555 - timer with Lamp and relay

04.02.26

Circuits

SimulIDE

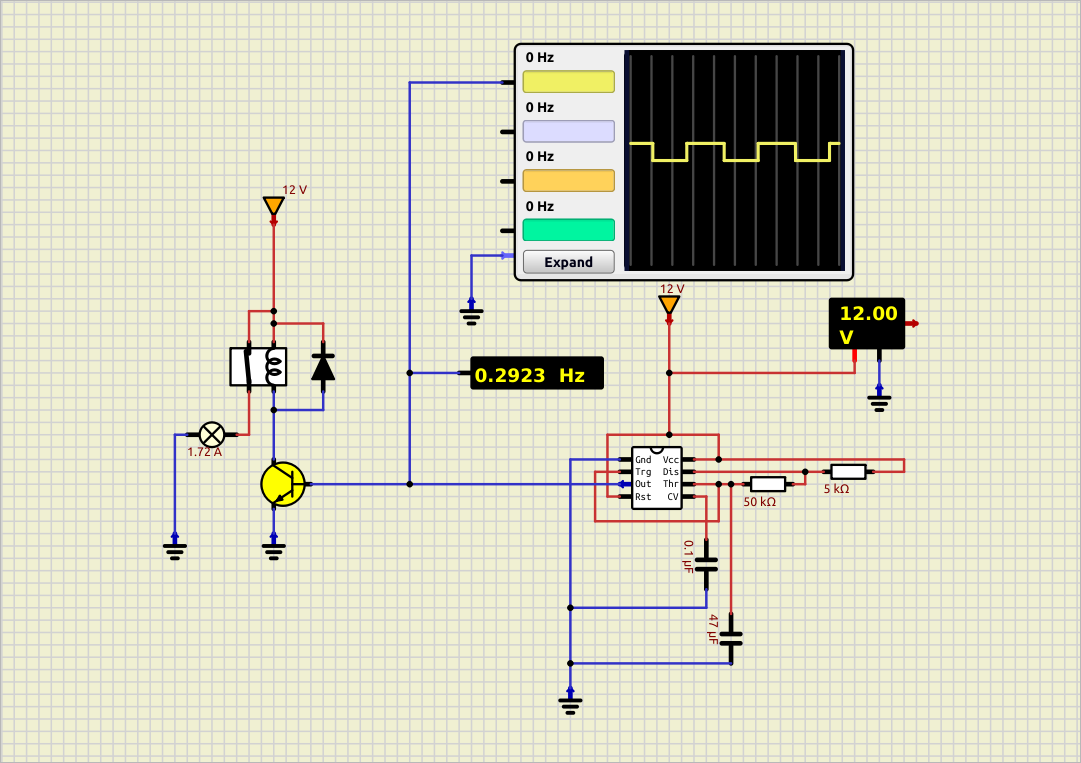

This ciscuit is designed in SimulIDE. That's a small program where you can design circuits, and "run" them, to see if it works as planed. This circuit is a 555 - timer, blinking an incandescent lamp. With a relay and a protective diode.
